Force calibration Machine, Model : FLC series
Features :
- This machine can calibrate Force proving instrument such as load cells, proving rings, Dynamometers & various force gauges in tension & Compression mode.
- Calibration as per ISO 376, IS 4169 & ASTM E 74 standards in both tension & compression mode.
- Calibration method : by comparison with Master load cell.
- Force actuation : Hydraulic powerpack, Precision flow control & ultra fine pressure control s crew pump
- This machine calibrate force proving instruments in class 01 & class 02 as per ISO 376 / IS 4169 standard.
- Operating range 5% to 100% of machine capacity
- Available machine capacity : 50kN, 100kN, 200kN, 300kN, 500kN, 1000kN

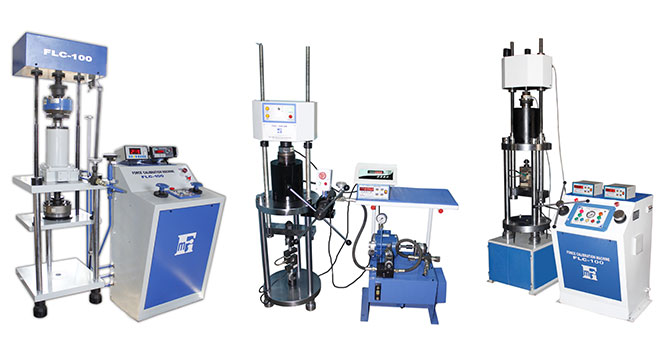

Note : The displayed photograph is of 200kN capacity machine. Machine appearance& design is slightly different according to the capacity.
