Universal Testing Machine

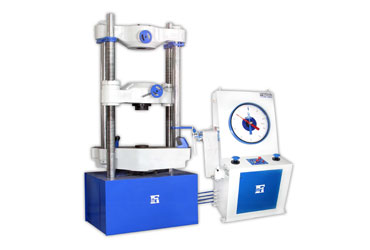

Analogue Universal Testing Machines

  • Tests like Tension, Compression, Transverse, etc. are conducted.
  • Autographic “Load Vs Elongation” recorder is fitted.
  • A wide range of metallic materials can be tested.

Optional Accessories :

  • Such as – Mechanical Extensometer, Load-Stabilizer, Attachments for Brinell test, Tensile test for shouldered & threaded, Single & Double shear test, Bolts-Nuts & Washer test, Rope test, Flat Belt test, Bend-Rebend test, 180° Bend test, Pull-Out test, etc. are available
  • Capacities from 100 kN to 2000 kN.( i.e. 10T to 200T)
  • Loading accuracy well within ±1% conforms to IS: 1828 / BS: 1610

Technical Specification For Analogue Versions :

MODEL TFUN-100 TFUN-200 TFUN-400 TFUN-600 TFUN-1000 TFUN-2000
Measuring Capacity (KN) 100 200 400 600 1000 2000
1’st Range (KN) 0 - 100 0 - 200 0 - 400 0 - 600 0 - 1000 0 – 2000
Least Count (KN) 0.2 0.4 0.8 1 2 4
2’nd Range (KN) 0 - 50 0 - 100 0 - 200 0 - 300 0 - 500 0 – 1000
Least Count (KN) 0.1 0.2 0.4 0.5 1 2
3’rd Range (KN) 0 - 25 0 - 50 0 - 100 0 - 120 0 - 250 0 – 500
Least Count (KN) 0.05 0.1 0.2 0.2 0.5 1
4’th Range (KN) 0 - 10 0 - 20 0 - 40 0 - 60 0 - 100 0 – 200
Least Count (KN) 0.02 0.04 0.08 0.1 0.2 0.4
Overall dimensions approx. (mm) 1950 x 800 x 1850 2000 x 800 x 1900 2100 x 800 x 2060 2200 x 800 x 2400 2350 x 800 x 2700 3000 x 800 x 3600
Weight approx (kg) 1200 1300 2100 3100 4100 8500

Common Specification For All Versions :

 MODEL

 TFUN-100

 TFUN-200

 TFUN-400

 TFUN-600

 TFUN-1000

TFUN-2000

 Measuring  Capacity (KN)

 100

 200

 400

 600

 1000

2000

 Max. Tensile Clearance  at  fully descended  piston position (mm)

 50 - 700

 50 - 700

 50 - 700

 50 - 800

 50 - 850

50 – 900

 Max. Clearance for Compression Test (mm)

 0 - 700

 0 - 700

 0 - 700

 0 - 800

 0 - 850

0 – 900

 Distance between columns (mm)

 450

 500

 500

 600

 750

850

 Piston Stroke (mm)

 150

 200

 200

 250

 250

300

 Max. straining speed at no load (mm/min)

 300

 150

 150

 100

 80

45

 Power Supply

440,3ph,AC



 Total   H.P.

 1.5

 1.5

 2.5

 2.5

 4.0

6.5

Standard Accessories For All Models :

 MODEL

 TFUN-100

 TFUN-200

 TFUN-400

 TFUN-600

 TFUN-1000

TFUN-2000

 Pair for compression plate dia. (mm)

 120

 120

 120

 120

 160

220

 For Round Specimen dia. (mm)

 10 - 20

 10 - 20

 10 - 25

 10 - 25

 10 - 30

20 – 40

 For Round Specimen dia. (mm)

 20 - 30

 20 – 30

 25 - 40

 25 - 40

 30 - 50

40 – 60

 For Round Specimen dia. (mm)

 -

 -

 -

 40 - 55

 50 - 70

60 – 80

 For Flat Specimen Thickness (mm)

 0 - 10

 0 - 10

 0 - 15

 0 - 15

 0 - 22

0 – 22

 For Flat Specimen Thickness (mm)

 10 - 20

 10 - 20

 15 - 30

 15 - 30

 22 - 44

22 – 45

 For Flat Specimen Thickness (mm)

 -

 -

 -

 -

 44 - 65

45 – 70

 Max. width of Flat Specimen (mm)

 50

 50

 65

 70

 70

90

 Adjustable Roller Support of width (mm)

 150

 150

 150

 160

 160

200

 Diameter (mm)

 30

 30

 30

 50

 50

70

 With Max. adjustable clearance (mm)

 450

 500

 500

 600

 800

900

 Punch tops of radius (mm)

 6

 6

 10

 16

 16

30

 Punch tops of radius (mm)

 12

 12

 16

 22

 22

40
