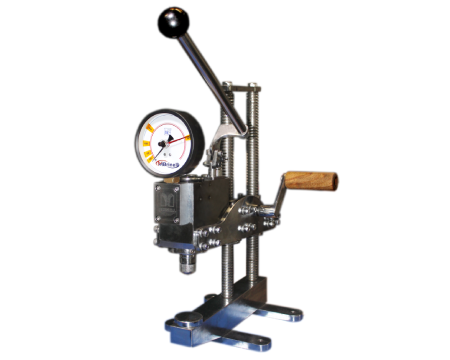

M-Brinell Machine
Hydraulically operated Portable Brinell Hardness Tester
"Fine Manufacturing Industries proudly presents the M-Brinell ,a cutting - edge, hydraulically operated portable Brinell hardness tester.
This innovative device boasts a unique dual - load capability, allowing for seamless testing of both small and large specimens.
The M-Brinell is a testament to our commitment to indigenous development and excellence in manufacturing.
Features :
- 1. Hydraulically Hand Operated Portable Brinell Hardness Tester.
- 2. Any Two Loads can be selected while ordering from following combination 750 & 3000 kgf. or 1000 & 3000 kgf.
- 2. Any Two Loads can be selected while ordering from following combination 750 & 3000 kgf. or 1000 & 3000 kgf.
- 3. Permanent Ball Indentation on the job with applied selected load and ball.
- 4. Dial gauge with dummy pointer for applied load conformation
- 5. Very Accurate with force accuracy ±1% confirms to ASTM E10, ASTM E110, IS 1500, ISO 6506.
- 6. Hardness range 20 to 650 HBW.
| Description | Specification | ||||
| Test Force (Select any one combination) | 750 kgf. & 3000 kgf. Or 1000 kgf & 3000 kgf | ||||
| Test Height | 300 mm | ||||
| Depth of throat | 120mm | ||||
| calibration accuracy | ±1% | ||||
| Net Weight | 18 kg. | ||||
List of Standard Accessories:
Supplied with the Machine
| Description | QTY |
| Basic machine | 01 No. |
| Oil Bottle | 01 No. |
| Vee Anvil | 01 No. |
| Flat Anvil | 01 No. |
| Spherical Anvil | 01 No. |
| Dia 10mm T.C. ball | 01 No. |
| Dia 10mm ball Cap | 01 No. |
| Test Block HB10/3000, range : 250-350HBW | 1 No. only |
| 25 x Brinell Microscope | 01 No. |
| Instruction Manual | 01 No. |
Optional Extra Accessories
- Job Clamping chain with clamp for dia 100 to dia 400 mm.
- BIMS : Computerized Brinell Impression Measurement System without PC.
- Ball Cap: Dia 5 & Dia 10mm
- TC Ball: Dia 5 & Dia 10mm
- Test Blocks : 1) HBW10 /3000 : 150 -200, 200-250, 250-300, 300-350, 350-400, 400-450, 450-500, 500-600 HBW
- Test Blocks : 2) HBW5/750 :150 -200,200-250,250-300,300-350, 350-400,400-450,450-500, 500-600 HBW
- Test Blocks : 3) HBW 10/1000 :90-120HBW
